How to Steer GdfidL via a Script, aka Check the Napoly-Integration

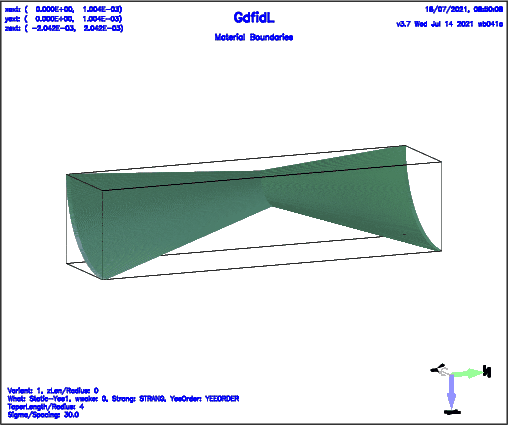

Figure 1: A Quarter of the Device, the tapered Length is 4 x Radius. The upstream and downstream Beampipes are very short, 10 x the Gridspacing.
\begin{figure}\centerline{ \psfig{figure=Volumeplot0.PS,width=13cm,bbllx=0pt,bblly=0pt,bburx=768pt,bbury=564pt,clip=} }\end{figure}

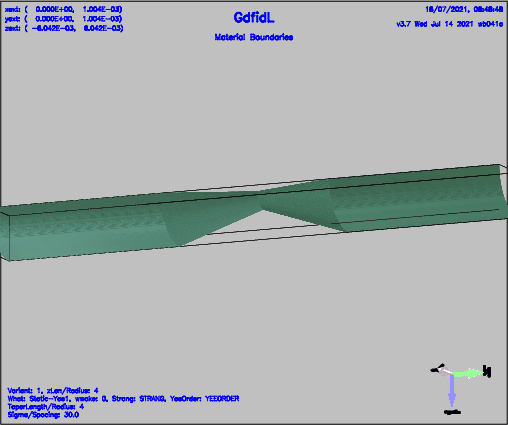

Figure 2: A Quarter of the Device, the tapered Length is 4 x Radius. The upstream and downstream Beampipes are quite long, 4 x the Radius.
\begin{figure}\centerline{ \psfig{figure=Volumeplot4.PS,width=13cm,bbllx=0pt,bblly=0pt,bburx=768pt,bbury=564pt,clip=} }\end{figure}

GdfidL implements five different Schemes to compute Wakepotentials.

 # The Yee-Scheme in a static Mesh.
   -fdtd, doit

 # Some higher Order Yee-Scheme in a static Mesh.
   -fdtd, hfdtd= yes, doit

 # The Yee-Scheme in a moving Mesh.
   -windowwake, strang= no, fdtdorder= 1, doit

 # Some other higher Order Yee-Scheme in a moving Mesh,
   -windowwake, strang= no, fdtdorder= 31, doit

 # Strang-Splitting in a moving Mesh.
   -windowwake, strang= yes, doit

When the Grid-Spacing is small enough to make the Dispersion-Error negligable, and when the Absorbing-Boundary-Conditions work well, and when the Napoly-Intergration works well, all Schemes should give roughly the same Result, independent on the Length of straight Beampipes below and above the Wakefield scattering Obstacle. This Writeup demonstrates the Computation via the five Schemes, for different Lengths of straight Beampipes. The Device is a rotational-symmetric Collimator-Like Obstacle.

The Script to compute the Wakepotentials of the Device(s) loops over ThisVariant taking the Values 1,2,3,4,5 and over ThisZLen taking the Values 0, 4. The outer Loop loops over ThisTLen taking the Values 4,8. With ThisTLen=4 it is a Device where the tapered Length is 4 x the Radius. When ThisTLen=8, the tapered Length is 8 x the Radius. When ThisTLen=16, the tapered Length is 16 x the Radius.

The Shell-Script tp compute all the Results is: check-Collimator.x

#!/bin/bash

 for ThisTLen in 4 8 16
 do

   # When the Napoly-Integration is correct,
   # and the Dispersion Error is negligable,
   # and the Absorbing-Boundary-Conditions work good,
   # the Result shall not depend on the Length of the straight Beampipes.
   #
   # ThisZLen: Length/Radius of the Beampipes
   for ThisZLen in 0 4
   do
      # Compute the Results via five different Variants.
      for ThisVariant in 1 2 3 4 5
      do
         gd1 -DVARIANT=$ThisVariant \
                -DZLEN=$ThisZLen \
                -DTLEN=$ThisTLen \
                -DSCRATCH=/scratch/wb/ \
            < CheckNapoly.gdf \
            | tee Logfile-tLen-$ThisTLen-Variant-$ThisVariant-zLen-$ThisZLen

         gd1.pp << UntilThisMarker
              -gen, infile= @last
                  # This also defines the 'defines()' of the last Computation.
                  # In Particular, VARIANT, ZLEN and TLEN

              -gen, scratch= /tmp/tLen-TLEN-Variant-VARIANT-zLen-ZLEN-
              -wakes, onlyplotfiles= yes, doit
UntilThisMarker
      done

      # Start mymtv2 (plotmtv) showing the five Results in a single Plot.
      mymtv2 -plotall -fg black -bg white \
	/tmp/tLen-$ThisTLen-Variant-{1,2,3,4,5}-zLen-$ThisZLen-Wq_AT_XY.0001 &

      mymtv2 -plotall -fg black -bg white \
       /tmp/tLen-$ThisTLen-Variant-{1,2,3,4,5}-zLen-$ThisZLen-WYq_AT_XY.0001 &

   done
 done

 exit 0

The Inputfile decribing the Device is: CheckNapoly.gdf

 define(PLOT, 0)

 if (VARIANT == 1) then
    sdefine(WHAT, Static-Yee1)
    define(WWAKE, 0)
    sdefine(HFDTD, no)
 else if (VARIANT == 2) then
    sdefine(WHAT, Static-Yee33)
    define(WWAKE, 0)
    sdefine(HFDTD, yes)
 else if (VARIANT == 3) then
    sdefine(WHAT, ww-Strang)
    define(WWAKE, 1)
    sdefine(STRANG, yes) define(YEEORDER, 4711)
 else if (VARIANT == 4) then
    sdefine(WHAT, ww-Yee1)
    define(WWAKE, 1)
    sdefine(STRANG, no) define(YEEORDER, 1)
 else if (VARIANT == 5) then
    sdefine(WHAT, ww-Yee31)
    define(WWAKE, 1)
    sdefine(STRANG, no) define(YEEORDER, 31)
 else
    echo bad Variant: VARIANT
    stop
 end if

 define(A, 1e-3 )  # Radius of the Beampipes
 define(B, A/3)    # Radius of the narrowest Part.

 define(GAP, TLEN*A)
# define(GAP, 8*A)  # Strang gives somewhat different Wy.

 define(STPSZE, A/80/3)
 define(SIGMA,   30*STPSZE)
 define(DY, 0.1*A)   # y-Position of the Linecharge.

 -gen,
     text()= Variant: VARIANT, zLen/Radius: ZLEN, tLen/Radius: TLEN
     text()= What: WHAT, wwake: WWAKE, Strang: STRANG, YeeOrder: YEEORDER
     text()= TaperLength/Radius: eval(GAP/A)
     text()= Sigma/Spacing: eval(SIGMA/STPSZE)

 define( GEOSCALE, 1 )
# To make the Frequency of an Impedance-Plot to k*A:
# define( GEOSCALE, @clight/A/2/@pi )
 -mesh, geoscale= GEOSCALE


 -general
    outfile= SCRATCH/Collimator-tLen-TLEN-Variant-VARIANT-zLen-ZLEN
    scratch= SCRATCH/scratch-

 -mesh
    spacing= STPSZE
    pxlow= 0, pxhigh= A+STPSZE, cxlow= mag, cxhigh= ele
    pylow= 0, pyhigh= A+STPSZE, cylow= ele, cyhigh= ele

    pzlow = - (GAP/2 + ZLEN*A + 10*STPSZE)
    pzhigh= + (GAP/2 + ZLEN*A + 10*STPSZE)

 -material, material= 3, type= electric, kappa= 56e6

 # Fill the Universe with Metal.
 -brick, material= 3, volume= ( -INF,INF, -INF,INF, -INF,INF ), doit

 -gccylinder
    material= 0, radius= A, length= INF
    origin= ( 0, 0,  GAP/2 )
    direction= ( 0, 0, 1 )
    doit # Upper Beampipe

    material= 0, radius= A, length= INF
    origin= ( 0, 0, -GAP/2 )
    direction= ( 0, 0, -1 )
    doit  # Lower BeamPipe

 # The Tapers.
 -gbor,
    material= 0, origin= ( 0, 0, 0 ), zprime= ( 0, 0, 1 ), rprime= ( 1, 0, 0 )
    clear
      point= (-GAP/2-STPSZE, 0) # ( Zi, Ri )
      point= (-GAP/2-STPSZE, A)
      point= (-GAP/2, A)
      point= ( 0, B )
      point= ( GAP/2, A)
      point= ( GAP/2+STPSZE, A)
      point= ( GAP/2+STPSZE, 0)
# show= now
   doit

 if (PLOT) then
   -volumeplot, roty= 90, doit
 end if

 -fdtd
    -ports
 define(NPML, 40)
       name= beamlow,  plane= zlow,  modes= 0, npml= NPML, doit
       name= beamhigh, plane= zhigh, modes= 0, npml= NPML, doit

    -lcharge
 if (PLOT) then
    showdata= yes
 else
    showdata= no
 end if
       charge= 1e-12, sigma= SIGMA
       xposition= 0, yposition= DY
    shigh= 12*SIGMA

 if (0) then
    # If one would want to create a Movie.
    define(NDT, 0.5 * STPSZE * GEOSCALE / @clight) # Every Timestep
    -fdtd, -fexport

       system( rm SCRATCH/H-fields-iVar-VARIANT-* )

       outfile= SCRATCH/H-fields-VARIANT-
       what= h-fields
       firstsaved= 1e-20
       lastsaved= INF
       distancesaved= NDT
       bbxlow= -STPSZE/10, bbxhigh= STPSZE/10
       bbylow= -INF, bbyhigh= INF
       bbzlow= -INF, bbzhigh= INF
    doit

 end if

 if (WWAKE) then
    -windowwake, fdtdorder= YEEORDER, strang= STRANG, doit
 else
    -fdtd, hfdtd= HFDTD, doit
 end if

A Quarter of the rotational symmetric Device is modeled. An electric Boundary Condition at the Plane of Symmetry at y=0 is applied. With that Conditions, the y-transverse Wakepotential is computed. The shown longitudinal Wakepotentials are not the Wakepotentials as would be seen by a Beam at x=y=0.

Results for a tapered Length of 4 x Radius

Plots of the computed longitudinal Wakepotential when ThisZLen has the Value 0, ie. the upstream and downstream Beampipes are very short, are shown in Figure 3. Plots of the computed longitudinal Wakepotential when ThisZLen has the Value 4, ie. the upstream and downstream Beampipes are 4 times the Radius long, are shown in Figure 4.

Plots of the computed transverse Wakepotential when ThisZLen has the Value 0, ie. the upstream and downstream Beampipes are very short, are shown in Figure 5. Plots of the computed transverse Wakepotential when ThisZLen has the Value 4, ie. the upstream and downstream Beampipes are 4 times the Radius long, are shown in Figure 6.

The Results agree well. All five Schemes give about the same Result. The Length of the Beampipes does not change the Results significantly.

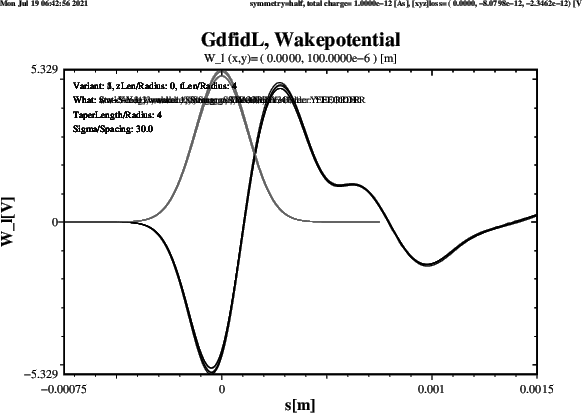

Figure 3: The longitudinal Wakepotential of the Device with tLen=4, computed via five different Schemes, the upstream and downstream Beampipes are very short.
\begin{figure}\centerline{ \psfig{figure=Wl-tLen-4-zLen-0.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}

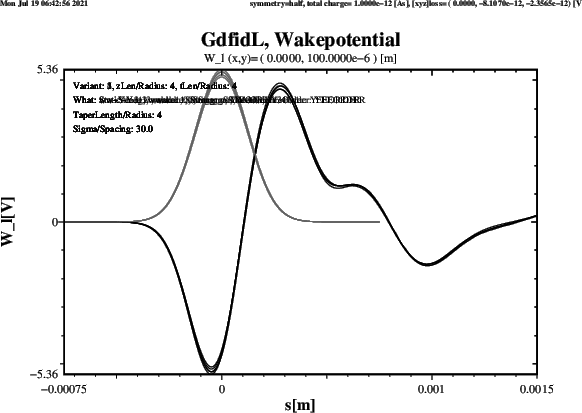

Figure 4: The longitudinal Wakepotential of the Device with tLen=4 computed via five different Schemes, the upstream and downstream Beampipes are 4 Radii long.
\begin{figure}\centerline{ \psfig{figure=Wl-tLen-4-zLen-4.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}
Figure 5: The transverse Wakepotential of the Device with tLen=4 computed via five different Schemes, the upstream and downstream Beampipes are very short.
\begin{figure}\centerline{ \psfig{figure=Wy-tLen-4-zLen-0.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}

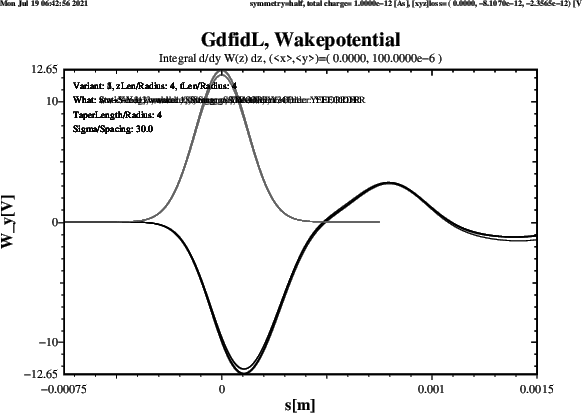

Figure 6: The transverse Wakepotential of the Device with tLen=4 computed via five different Schemes, the upstream and downstream Beampipes are 4 Radii long.
\begin{figure}\centerline{ \psfig{figure=Wy-tLen-4-zLen-4.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}

Results for a tapered Length of 8 x Radius

This Section presents the Results when the tapered Section is twice as long.

Plots of the computed longitudinal Wakepotential when ThisZLen has the Value 0, ie. the upstream and downstream Beampipes are very short, are shown in Figure 7. Plots of the computed longitudinal Wakepotential when ThisZLen has the Value 4, ie. the upstream and downstream Beampipes are 4 times the Radius long, are shown in Figure 8.

Plots of the computed transverse Wakepotential when ThisZLen has the Value 0, ie. the upstream and downstream Beampipes are very short, are shown in Figure 9. Plots of the computed transverse Wakepotential when ThisZLen has the Value 4, ie. the upstream and downstream Beampipes are 4 times the Radius long, are shown in Figure 10.

The Results agree well. Four Schemes give about the same Result. The Scheme which gives a significantly different Result for the Wy-Wakepotential is the Strang-Splitting Scheme. The Length of the Beampipes does not change the Results significantly.

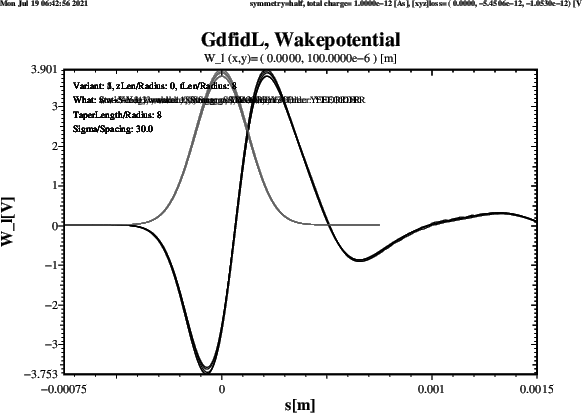

Figure 7: The longitudinal Wakepotential of the Device with tLen=8, computed via five different Schemes, the upstream and downstream Beampipes are very short.
\begin{figure}\centerline{ \psfig{figure=Wl-tLen-8-zLen-0.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}

Figure 8: The longitudinal Wakepotential of the Device with tLen=8 computed via five different Schemes, the upstream and downstream Beampipes are 4 Radii long.
\begin{figure}\centerline{ \psfig{figure=Wl-tLen-8-zLen-4.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}
Figure 9: The transverse Wakepotential of the Device with tLen=8 computed via five different Schemes, the upstream and downstream Beampipes are very short.
\begin{figure}\centerline{ \psfig{figure=Wy-tLen-8-zLen-0.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}

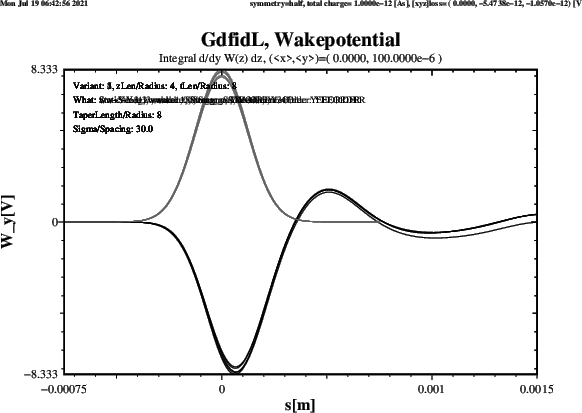

Figure 10: The transverse Wakepotential of the Device with tLen=8 computed via five different Schemes, the upstream and downstream Beampipes are 4 Radii long.
\begin{figure}\centerline{ \psfig{figure=Wy-tLen-8-zLen-4.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}

Results for a tapered Length of 16 x Radius

This Section presents the Results when the tapered Section is four times as long.

Plots of the computed longitudinal Wakepotential when ThisZLen has the Value 0, ie. the upstream and downstream Beampipes are very short, are shown in Figure 11. Plots of the computed longitudinal Wakepotential when ThisZLen has the Value 4, ie. the upstream and downstream Beampipes are 4 times the Radius long, are shown in Figure 12.

Plots of the computed transverse Wakepotential when ThisZLen has the Value 0, ie. the upstream and downstream Beampipes are very short, are shown in Figure 13. Plots of the computed transverse Wakepotential when ThisZLen has the Value 4, ie. the upstream and downstream Beampipes are 4 times the Radius long, are shown in Figure 14.

The Results agree well. Four Schemes give about the same Result. The Scheme which gives a significantly different Result for the Wy-Wakepotential is the Strang-Splitting Scheme. The Length of the Beampipes does not change the Results significantly.

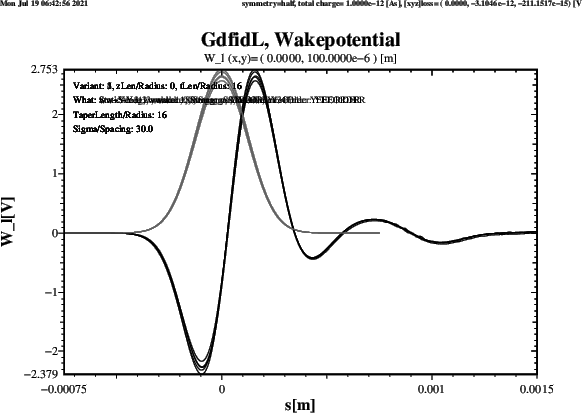

Figure 11: The longitudinal Wakepotential of the Device with tLen=16, computed via five different Schemes, the upstream and downstream Beampipes are very short.
\begin{figure}\centerline{ \psfig{figure=Wl-tLen-16-zLen-0.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}

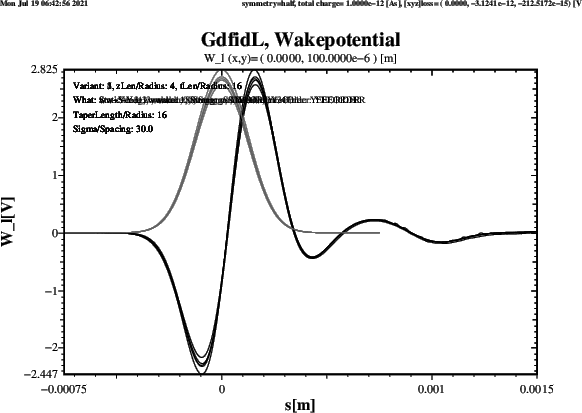

Figure 12: The longitudinal Wakepotential of the Device with tLen=16 computed via five different Schemes, the upstream and downstream Beampipes are 4 Radii long.
\begin{figure}\centerline{ \psfig{figure=Wl-tLen-16-zLen-4.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}

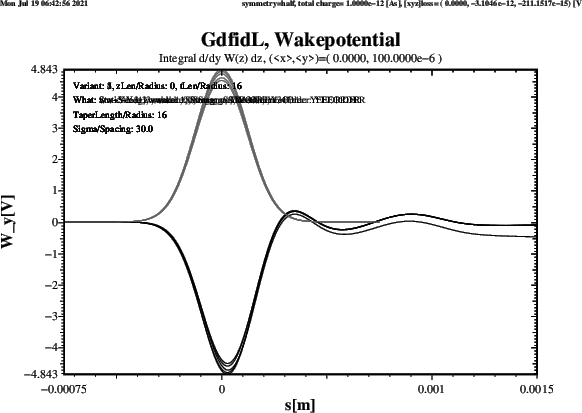

Figure 13: The transverse Wakepotential of the Device with tLen=16 computed via five different Schemes, the upstream and downstream Beampipes are very short.
\begin{figure}\centerline{ \psfig{figure=Wy-tLen-16-zLen-0.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}

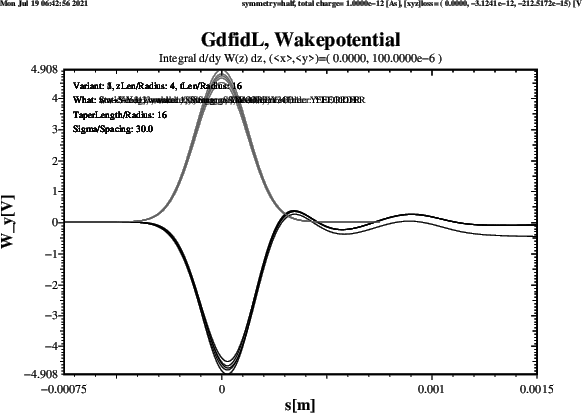

Figure 14: The transverse Wakepotential of the Device with tLen=16 computed via five different Schemes, the upstream and downstream Beampipes are 4 Radii long.
\begin{figure}\centerline{ \psfig{figure=Wy-tLen-16-zLen-4.ps,width=13cm,bbllx=21pt,bblly=47pt,bburx=758pt,bbury=574pt,clip=} }\end{figure}

This is the End of this Writeup.
