# How to compute the External Q of a heavily loaded Cavity

Dr Alexei Blednykh of BNL had send us the Description of a Cavity where some heavily loaded Resonance near 2.7 GHz can be identified from the longitudinal Shunt-Impedance computed via a Wakepotential Computation. He could not find that Resonance in the Results of a lossy Eigenvalue Computation. This Writeup tells the Story how to find that Resonance.

The inputfile for this cavity is STL_NSLS2_LanCav.gdf

# Wakepotential, Impedance

We compute with an Inputfile that is used for Wakepotential Computation, for a Time Domain Computation and for a Eigenvalue Computation with absorbing Boundaries. What is computed is selected via Parameters on the Command Line. The first Step is the Computation with a relativistic Line Charge, ie. a Wake-Potential Computation.
   gd1 -DEIGEN=0 -DWAKE=1 < STL_NSLS2_LanCav.gdf | tee Logfile

When that time-Domain Computation has sufficiently Data generated, the Postprocessor is started to compute the Impedance.
 # Input for gd1.pp
-general, infile @last
-wakes, impedance= yes, doit

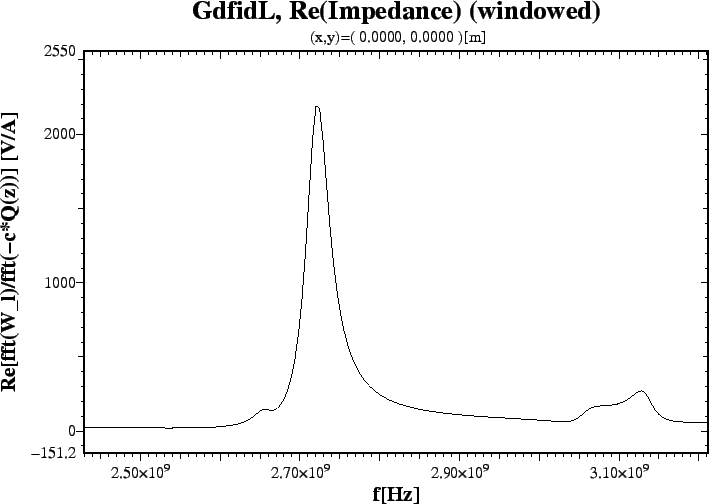

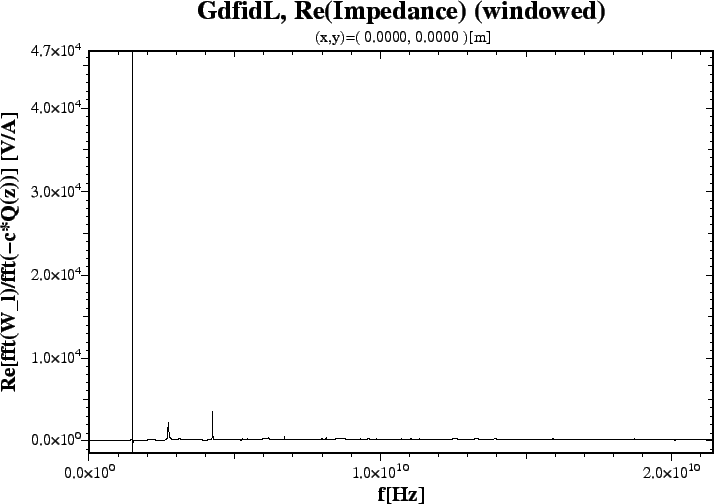

A Plot of the Real-Part of the longitudinal Impedance is shown in Figure 1. When the Region around 2.7 GHz is selected via a Mouse-Zoom, we get a Plot as shown in Figure 2. Clearly, there is a Resonance near 2.72 GHz, which is excited by the Beam and couples to the Beam.

# Time Domain with an excited Port

To inspect what the Field of the Resonance looks like we perform a Time Domain Computation with an excited Port and store the Fields at selected Times. The excitation is such that Fields that couple to the Beam are excited, and the Excitation is such that mostly Fields near 2.72 GHz are excited.
   gd1 -DEIGEN=0 -DWAKE=0 < STL_NSLS2_LanCav.gdf | tee Logfile

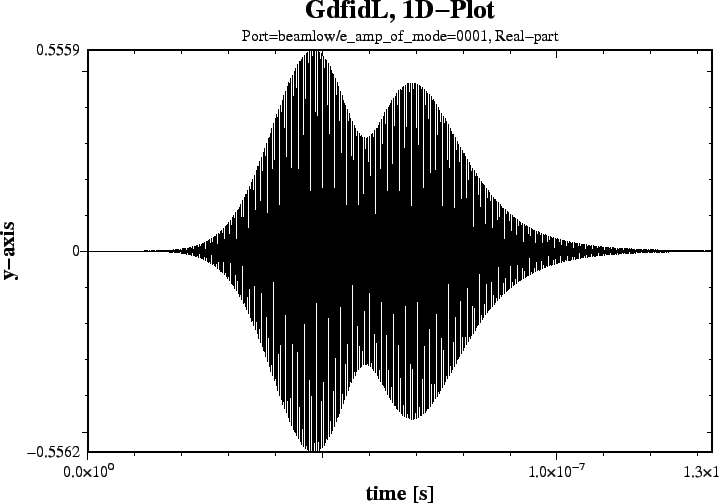

When that time-Domain Computation is finished, the Postprocessor is started to generate a Plot of the Amplitude of the reflected Field, and Plots of the Field when the Excitation has sufficiently died.
 # Input for gd1.pp
-general, infile @last
-sparameter, time= yes, doit
-3darrow, fonmat= yes, symbol= e_100, doit

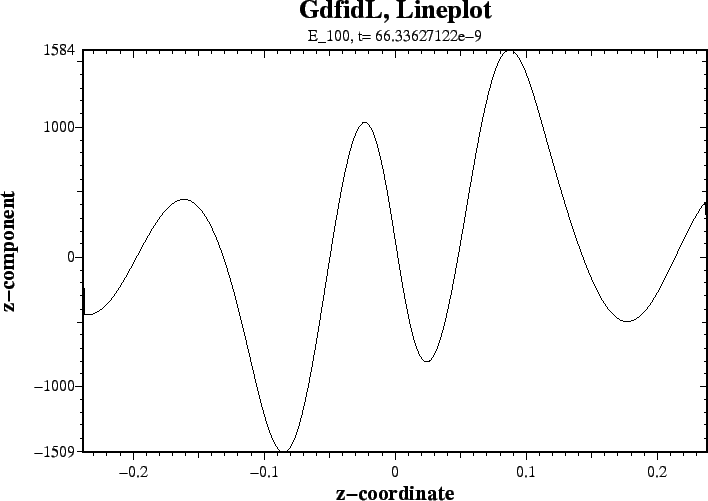

-lineplot, component= z, direction= z, startpoint= ( 0, 0, -99999), doit


# Lossy Eigenvalues with absorbing Boundary Conditions

We perform an Eigenvalue Computation with absorbing Boundary Conditions.
 gd1 -DEIGEN=1 -DWAKE=0 < STL_NSLS2_LanCav.gdf | tee Logfile-Eigen

The wanted Mode is the 30.th found one. The List of Modes near the End of the Logfile:
    i            freq(i)              Q(i)       acc(i)   cont(i)
1 ( 1.44541E+09, 1.10831E+08)     6.5208     0.00129  0.02753       # "grep" for me
2 ( 1.47965E+09,-5.46135E+04)   -13.5465e+3  0.00375  0.08152       # "grep" for me
3 ( 1.50022E+09,-2.43382E+04)   -30.8203e+3  0.00347  0.05900       # "grep" for me
4 ( 1.54421E+09, 6.31150E+07)    12.2333     0.00170  0.01434       # "grep" for me
5 ( 1.63500E+09, 4.25028E+08)     1.9234     0.00118  0.01064       # "grep" for me
6 ( 1.65830E+09, 3.72862E+07)    22.2374     0.00135  0.04824       # "grep" for me
7 ( 1.67591E+09, 1.08831E+08)     7.6996     0.00051  0.00730       # "grep" for me
8 ( 1.73391E+09, 2.54403E+08)     3.4078     0.00041  0.00614       # "grep" for me
9 ( 1.77068E+09, 3.20738E+07)    27.6033     0.00131  0.02232       # "grep" for me
10 ( 1.82235E+09, 8.45565E+07)    10.7759     0.00064  0.01134       # "grep" for me
11 ( 1.86006E+09, 1.18182E+07)    78.6949     0.00124  0.03053       # "grep" for me
12 ( 1.86251E+09, 7.82413E+06)   119.0233     0.00059  0.07655       # "grep" for me
13 ( 1.86973E+09, 4.34833E+07)    21.4994     0.00209  0.03727       # "grep" for me
14 ( 1.92237E+09, 2.11857E+08)     4.5370     0.00028  0.00511       # "grep" for me
15 ( 1.93942E+09, 3.56834E+09)     0.2717     0.09077  1.00000       # "grep" for me
16 ( 1.99001E+09, 1.53246E+08)     6.4928     0.00033  0.00287       # "grep" for me
17 ( 2.10265E+09,-5.16131E+09)    -0.2036     0.22622  1.00000       # "grep" for me
18 ( 2.10352E+09,-1.13109E+09)    -0.9298     0.03993  1.00000       # "grep" for me
19 ( 2.10833E+09, 2.11985E+10)    49.7282e-3  0.21832  1.00000       # "grep" for me
20 ( 2.10950E+09, 1.39295E+08)     7.5720     0.00014  0.00235       # "grep" for me
21 ( 2.17047E+09, 2.44018E+08)     4.4474     0.00165  0.02942       # "grep" for me
22 ( 2.18231E+09, 1.46024E+08)     7.4724     0.00026  0.02438       # "grep" for me
23 ( 2.19282E+09, 3.64095E+08)     3.0113     0.00056  0.01029       # "grep" for me
24 ( 2.25231E+09, 8.71464E+07)    12.9226     0.00006  0.00073       # "grep" for me
25 ( 2.33719E+09, 4.82227E+07)    24.2333     0.00011  0.00147       # "grep" for me
26 ( 2.34101E+09, 2.66026E+07)    43.9996     0.00003  0.00019       # "grep" for me
27 ( 2.50534E+09, 1.10756E+06)     1.1310e+3  0.00102  0.00772       # "grep" for me
28 ( 2.52241E+09, 1.41953E+06)   888.4680     0.00103  0.00979       # "grep" for me
29 ( 2.65616E+09, 1.36073E+07)    97.6004     0.00153  0.01528       # "grep" for me
30 ( 2.72007E+09, 1.76612E+07)    77.0068     0.00048  0.00842       # "grep" for me
31 ( 2.79701E+09, 2.66525E+06)   524.7172     0.00035  0.00643       # "grep" for me
32 ( 2.82197E+09, 2.38525E+06)   591.5471     0.00029  0.00174       # "grep" for me
33 ( 3.05557E+09, 1.96806E+07)    77.6291     0.00090  0.00590       # "grep" for me
34 ( 3.13359E+09, 1.69010E+07)    92.7041     0.00076  0.00531       # "grep" for me
35 ( 3.35784E+09, 3.02190E+08)     5.5558     0.02022  0.15663       # "grep" for me
36 ( 3.56794E+09, 1.16206E+08)    15.3518     0.00141  0.01191       # "grep" for me
37 ( 3.56965E+09, 1.24587E+08)    14.3259     0.00114  0.03394       # "grep" for me
38 ( 3.62960E+09, 3.21259E+07)    56.4901     0.00157  0.04758       # "grep" for me
39 ( 3.63499E+09, 2.73574E+04)    66.4352e+3  0.00941  1.00000       # "grep" for me
40 ( 3.63535E+09, 1.23630E+04)   147.0248e+3  0.00456  1.00000       # "grep" for me


 # Input for gd1.pp
-general, infile @last

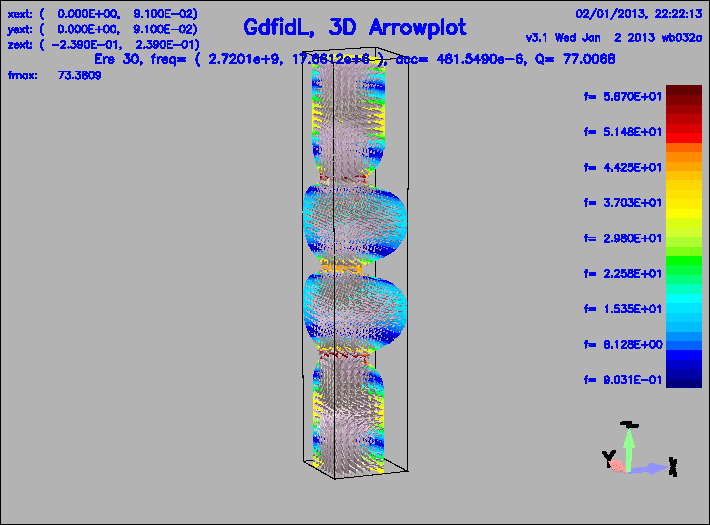

-3darrow, fonmat= yes, symbol= ere_30, doit, symbol= eim_30, doit

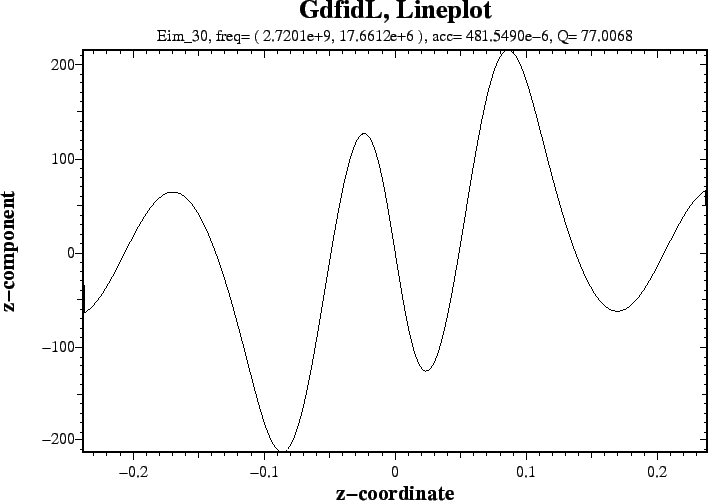

-lineplot, symbol= eim_30, component= z, direction= z, startpoint= ( 0, 0, -99999), doit
