-brick: a rectangular brick

A brick is a rectangular box, with its edges parallel to the cartesian coordinate axes.

 ##############################################################################
 # Flags: nomenu, noprompt, nomessage,                                        #
 ##############################################################################
 # section -brick                                                             #
 ##############################################################################
 # material=  1, sloppy= no                                                   #
 # whichcells= all, taboo= none                                               #
 #     show= off    -- [off|now|later|all]                                    #
 #     name= brick-000000000                                                  #
 # xlow = undefined     , ylow = undefined     , zlow = undefined             #
 # xhigh= undefined     , yhigh= undefined     , zhigh= undefined             #
 # # # # #                                                                    #
 # volume= (undefined, undefined, undefined, undefined, undefined, undefined) #
 ##############################################################################
 # doit, return, help                                                         #
 ##############################################################################

• material
  The material index that shall be assigned to the volume that makes up the brick.
• sloppy
  Possible values are yes, no. If no, meshplanes are enforced at the borderplanes of the brick.
• whichcells
  Possible values are all, or a material-index. If whichcells= all, all volume inside the brick is assigned the material-index, provided the former material is not taboo. If whichcells is a material-index, only the parts of the brick that are currently filled with the given index are assigned the new material-index.
• taboo
  Possible values are none, or a material-index. If taboo= all, all volume inside the brick is assigned the material-index. If taboo is a material-index, only the parts of the brick that are currently filled with another index than the given index are assigned the new material-index.
• show
  If show=now, an outline of the brick is shown.
  If show=all, an outline of the brick together with outlines of other bricks, ggcylinders, gbors and gccylinders is shown.
  If show=later, the outline is not shown immediately, but is recorded to be shown later together with the outlines of other items.
• xlow, xhigh, ylow, yhigh, zlow, zhigh, volume
  The coordinates of the bounding planes of the brick. Alternatively to specifying via xlow.., you can specify the volume of the brick as
  volume= (XL, XH, YL, YH, ZL, ZH).
• doit
  Puts the current data into the meshing database.

Example

 # /usr/local/gd1/examples-from-the-manual/brick-example.gdf
 -general
     outfile= /tmp/UserName/example
     scratch= /tmp/UserName/scratch

 -mesh
     pxlow= 0, pxhigh= 1e-2
     pylow= 0, pyhigh= 2e-2
     pzlow= 0, pzhigh= 1e-2

     cxlow= ele, cxhigh= mag
     cylow= ele, cyhigh= mag
     czlow= ele, czhigh= mag

     spacing= 0.5e-3

 -brick
     material= 1, sloppy= no
        xlow= 0.3e-2, xhigh= 0.8e-2
        ylow= 0.2e-2, yhigh= 1.3e-2
        zlow= 0.2e-2, zhigh= 0.6e-2
     doit

 -volumeplot
     scale= 3
     doit

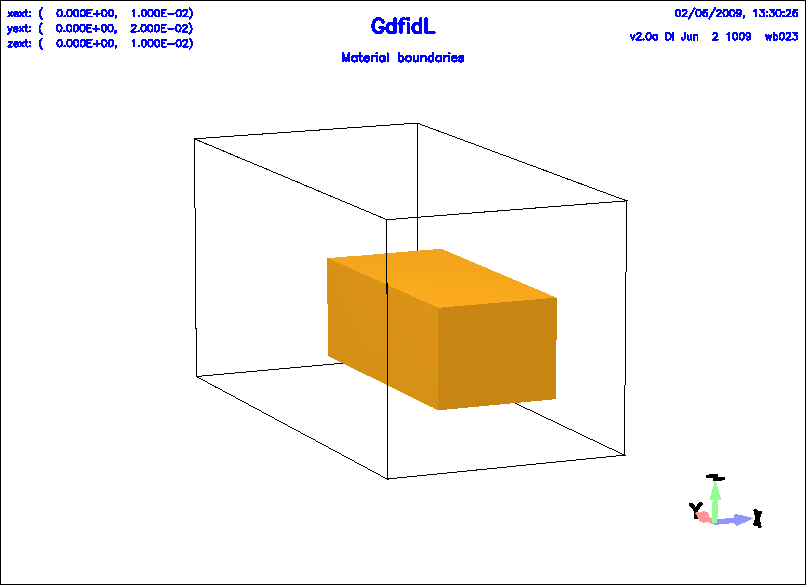

Figure 1.1: A simple brick
